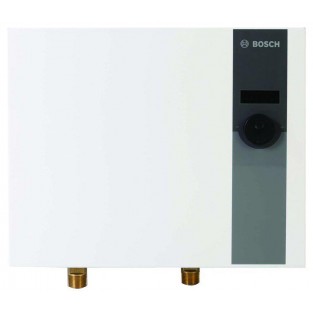

Bosch Tronic 6000 C WH17 (PowerStar AE115) Electric Tankless Water Heater
The Bosch Tronic 6000 C WH17 is ideal for replacing your electric storage tank water heater. The Bosch Tronic 6000 WH17 electric whole house tankless water heater is compact and powerful and can installed virtually anywhere inside the home. Advantages include endless hot water, reduced electricity costs and substantial space savings. This new model features a digital display and a thermostat control on the front of the unit.
Designed to replace a 40-gallon electric tank. The Bosch Tronic 6000C WH17 electric tankless water heater is built to last. It has solid copper heat exchangers and brass fittings. A thermal cut-out switch provides an excellent safety measure and ensures that the heating elements will not need replacement, as they do with many other electric tankless water heaters. This small unit can be installed virtually anywhere in the home and, of course, produce an endless supply of hot water.
The Bosch Tronic 6000C WH17 is the direct replacement for the Bosch Tronic 5000 C WH17 and it also replaces the older Powerstream Pro RP17PT and the Bosch PowerStar AE115.
Bosch Tronic 6000 WH17 Electric Tankless Water Heater Features:
• Compact, whole-house tankless heater
• 90+% efficient with zero stand-by loss
• Solid copper heat exchanger
• Electronic flow switch
• Thermal cut-out protects elements from dry fire damage
• Built-in flow sensor ensures constant output temperature
• External temperature control knob
• 5-Year limited warranty
Bosch Tronic 6000 WH17 Electric Tankless Water Heater Specifications:
• Efficiency - 94%
• Weight - 22 lbs.
• Dimensions - 12½" x 15¼" x 4½"
• Water Fittings - ¾" male NPT
• Volts - 240
• Kilowatts - 17.25kWh
• Amps -
o US: 80 (2 x 40 amps)*
o CANADA: 120 (1 x 80 amps)**
• Wire Size -
o US: 8 gauge (4 conductors & ground)
o CANADA: 2 gauge (2 conductors & ground)**
• Phase - Single
• Minimum Flow Rate at Given Temperature Rise -
o 45ºF Rise 2.6 gpm***
o 50ºF Rise 2.3 gpm
o 60ºF Rise 2.0 gpm
o 70ºF Rise 1.7 gpm
o 80ºF Rise 1.5 gpm
Average ground water temperature in the United States is 55ºF.
NOTE: The unit will not provide an output temperature above 131ºF.
* Minimum recommended service for the Bosch Tronic 6000 Model WH17 is 150 amps
** In Canada unit must be wired to a single breaker. AE Canada Kit required. Always check local codes.
*** gpm = Gallons Per Minute
The Bosch Tronic 6000 WH17 is the replacement for the Powerstream Pro RP17PT and the Powerstar AE115. Please note that the older Powerstream Pro RP17PT and the Powerstar AE115 electric tankless water heaters were 15.5 x 15.25 x 4.5 inches while the Bosch Tronic 6000 Model WH17 measures 12.5 x 15.25 x 4.5 inches, just like the Bosch Tronic 5000 WH17. The water connections on the Bosch Tronic 6000 Model WH17 are also off slightly from the older model heaters.
The Bosch Tronic 6000 Model WH17 has serial numbers that begin with 555 and higher and the PCB replacement part number is 8-738-710-921. -
Brand Bosch Tronic Model Bosch Tronic 6000C WH17 Manufacturer's Part Number (MPN) 7736500682 Replaces Old MPNs RP17PT, AE115, 7738002259, 7-738-002-259 Alternate MPNs 7-736-500-682 Application Commercial,Residential Product Type Whole House Indoor/Outdoor Installation Indoor Heater Style Tankless Output (kW) 17.25 Amperage (Amps) 80 Voltage (Volts) 240 / 220 / 208 Electrical Requirements (AMPS / V) 2x40A / 240V Thermal Efficiency (%) 97 Activation Flow Rate (GPM) 0.6 Capacity @ 45 Deg F Temp Rise (GPM) 2.6 Capacity @ 77 Deg F Temp Rise (GPM) 1.5 Default Temperature (Deg F) 122 Water Connections (Inches) 3/4 NPT Water Pressure Rating (PSI) 15 - 150 Shipping Weight (Lbs) 21.0000 Product Weight (Lbs) 20 Product Dimensions (H" x W" x D") 12.5 x 15.25 x 4.5 Warranty 5-year limited warranty on the heating modules; 2-year limited warranty on other component parts -
Write Your Own Review
-
Warranty
Bosch gas tankless water heaters, electric tankless water heaters, electric mini-tank water heaters and accessories are warranted directly by the Manufacturer (BOSCH) through Bosch Thermotechnology Corp.
Please visit the Bosch-Climate.us web site Warranty Page for the full details of the Bosch product warranty.
Be sure to fill out your Warranty Card and send it to Bosch immediately after your installation to ensure you are registered for the full product warranty. -
