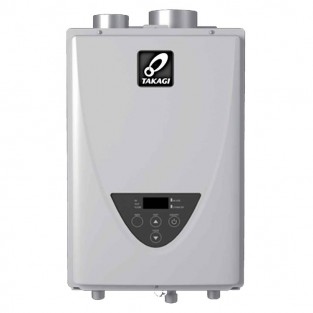

Takagi TK-510U-I Natural Gas / Liquid Propane Indoor Tankless Water Heater
The Takagi TK-510U-I Natural Gas / Liquid Propane Indoor Tankless Water Heater is compact enough to install virtually anywhere. This model is loaded with features including freeze, surge, trouble shooting diagnostics and overheat protection.
At 199,000 BTUs/hr maximum input, this tankless water heater can supply 2 showers simultaneously. It features an electronic ignition system and requires 4 inch diameter stainless steel vent pipe and can be vented either through the side wall or up through the roof. Includes built-in temperature controller.
This tankless water comes set for Natural Gas and includes a Liquid Propane Conversion Kit.
The Takagi TK-110U-I is the best Takagi replacement for the Takagi T-D2-IN-N (Natural Gas) and T-D2-IN-L (Liquid Propane) tankless water heaters.
Please note that the Takagi TK-510U-I Tankless Water Heater is the same as the AO Smith ATI-510U. -
Brand Takagi Model Takagi TK-510U-I Manufacturer's Part Number (MPN) TK-510U-I Replaces Old MPNs T-D2-IN-N, T-D2-IN-L Alternate MPNs ATI-510U Voltage (Volts) 120 Product Dimensions (H" x W" x D") 20.50 x 13.75 x 10 Product Weight (Lbs) 40 Shipping Weight (Lbs) 40.0000 Capacity @ 35 Deg F Temp Rise (GPM) 8.5 Capacity @ 45 Deg F Temp Rise (GPM) 7.5 Capacity @ 55 Deg F Temp Rise (GPM) 6.5 Maximum Input (BTUs) 199000 Minimum Input (BTUs) 15000 Maximum Output (BTUs) 199000 Minimum Output (BTUs) 15000 Altitude Test (Ft) 10,100 Temperature Range (Deg F) 100 - 167 Venting Options Cat III Stainless Steel Venting Diameter (Inches) 4 Vent Maximum Run (Ft) 60 Water Connections (Inches) 3/4 NPT Water Pressure Rating (PSI) 15 - 150 Heater Style Tankless Activation Flow Rate (GPM) 0.5 Electrical Requirements (AMPS / V) <=2.5 / 120 BTU Rating 199000 Indoor/Outdoor Installation Indoor Product Type Whole House Remote Control Includes built-in temperature controller Color White Warranty 15-year limited warranty on the heat exchanger (10-year if used in recirculating applications); 5-year limited warranty on all other parts; 1-year labor warranty -
Write Your Own Review
-
Warranty
General
Takagi gas tankless water heaters are warranted by the Manufacturer (Takagi) through Takagi Corp. will furnish a replacement heat exchanger and will furnish a replacement of any other part which fails in normal use and service within the applicable periods specified below, in accordance with the terms of this warranty. The Takagi Corp. replacement will be warranted for the unexpired portion of the original warranty.
The Heat Exchanger
If the heat exchanger fails within Fifteen (15) years after the original installation and operation, Takagi Corp. will furnish a replacement heat exchanger. However, if the water heater is used within an approved hot water recirculation and supplied with circulated water, this heat exchanger warranty is limited to ten (10) years from date of original installation and operation. If the water heater is installed in other than a single family dwelling, commercial use or used for heating applications this heat exchanger warranty is limited to ten (10) years from date of original installation and operation.
Exceptions
This warranty will not apply:
1. to defects or malfunctions resulting from failure to properly install, operate or maintain the unit in accordance with the printed instructions provided;
2. to damage or abuse, accident, neglect or freezing and other acts of nature;
3. damages due to unauthorized alterations, attachments, and/or repairs.;
4. damages due to a lack of maintenance (e.g. water filter, water treatment system, vent blockage, etc.);
5. to defects or damage cause by any attachment or modification, including any energy-saving device;
6. to damage resulting from scale deposits and/or highly mineralized / unsoftened water supply.
All Other Parts
If any other part fails within five (5) years after original installation and operation, Takagi Corp. will furnish a replacement part free of charge.
Service Labor Costs
The manufacturer will provide for reasonable labor charges associated with warranty repairs or replacements within one (1) year from the date of purchase. The manufacturer will only pay directly to the service provider.
Additionally, all warranty claims and warranty service must be authorized and approved by the manufacturer.
How to Make a Claim
Any claim for warranty parts or labor must be made to to the manufacturer.l dealer or distributor:
TAKAGI CORP.
500 Wald St.
Irvine, CA 92618
Tel. 1-888-882-5244
www.takagi.com
The damaged or defective item must be made available in exchange for the replacement.
Miscellaneous
No one is authorized to make any other warranties on behalf of Takagi Corp.. It is expressly understood that the replacement warranty of Bosch Thermotechnology Corp. shall be in lieu of any and all other warranties, express or implied, including warranties of merchantability or fitness for a particular use or purpose, and further that Takagi Corp. shall not be liable for any loss or damage directly or indirectly arising from the use of the hot water heater, or for any consequential damages arising from such use (including damages from water leakage). Takagi Corp. sole liability with respect to any defect shall be for the replacement of the defective part(s). Some states do not allow such limitations and exclusions, so the above may not apply to you.
This warranty gives specific legal rights. You may also have other rights which vary from state to state. -
